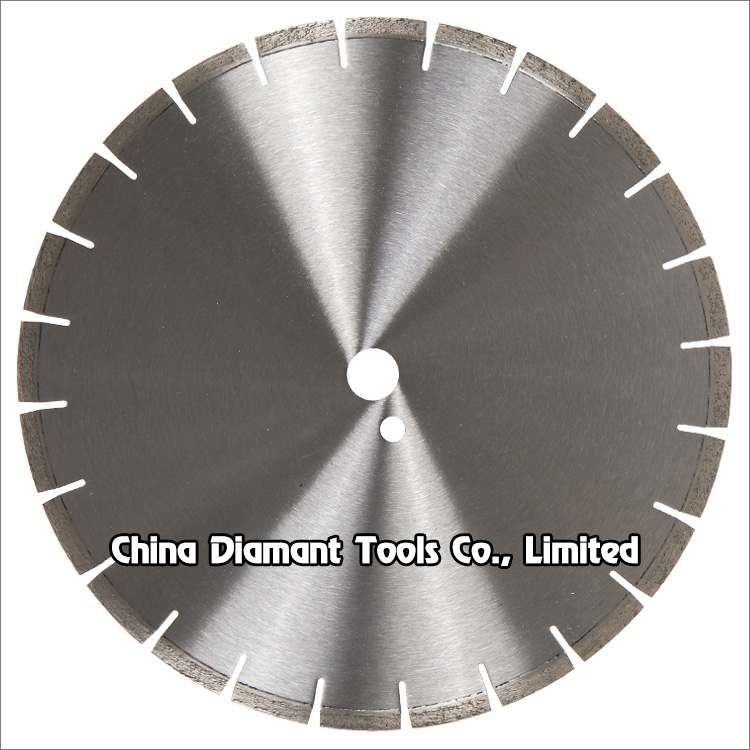

Concrete Cutting Diamond Saw Blades
- Normal Segments, Laser or Silver Welded
|
 |
Laser or silver welded normal segmented diamond saw blades designed for cutting hard non-metallic materials such as
concrete, cured concrete, concrete slabs and pipes, etc.,
also for cutting reinforced concrete such as Road, Bridge, etc.
Diameter over(include)1000mm is silver
welded. |
|
Code
No. |
Diameter
(mm/inch) |
Segment Size
(mm) |
Segment No.
(pcs/set) |
Welding Method |
|
CD-SBC-01-01 |
105mm(4") |
40x2.2x10 |
8 |
Laser Welded |
|
CD-SBC-01-02 |
115mm(4.5") |
40x2.2x10 |
9 |
|
CD-SBC-01-03 |
125mm(5") |
40x2.2x10 |
10 |
|
CD-SBC-01-04 |
150mm(6) |
40x2.2x10 |
12 |
|
CD-SBC-01-05 |
180mm(7) |
40x2.4x10 |
14 |
|
CD-SBC-01-06 |
200mm(8") |
40x2.8x10 |
16 |
|
CD-SBC-01-07 |
230mm(9") |
40x2.8x10 |
18 |
|
CD-SBC-01-08 |
250mm(10") |
40x3.0x10 |
18 |
|
CD-SBC-01-09 |
300mm(12") |
40x3.0x10 |
21 |
|
CD-SBC-01-10 |
350mm(14") |
40x3.2x10 |
24 |
|
CD-SBC-01-11 |
400mm(16") |
40x3.6x10 |
28 |
|
CD-SBC-01-12 |
450mm(18") |
40x4.0x10 |
32 |
|
CD-SBC-01-13 |
500mm(20") |
40x4.2x10 |
36 |
|
CD-SBC-01-14 |
600mm(24") |
40x4.6x10 |
42 |
|
CD-SBC-01-15 |
650mm(26") |
40x4.6x10 |
46 |
|
CD-SBC-01-16 |
700mm(28") |
40x4.6x10 |
50 |
|
CD-SBC-01-17 |
750mm(30") |
40x4.8x10 |
54 |
|
CD-SBC-01-18 |
800mm(32") |
40x4.8x10 |
57 |
|
CD-SBC-01-19 |
900mm(36") |
40x4.8x10 |
52 |
Silver Welded |
|
CD-SBC-01-20 |
1000mm(40") |
40x5.2x10 |
58 |
|
CD-SBC-01-21 |
1050mm(42") |
40x5.2x10 |
60 |
|
CD-SBC-01-22 |
1200mm(48") |
40x5.2x10 |
70 |
The above specifications is only for reference, other specifications
may be available as per customer's demand.
